Product Design

Water Management

infra red controlled tap

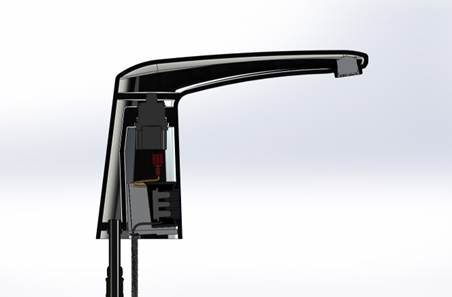

Redesign of a chrome plated infra-red controlled brass tap

Redesign of a chrome plated infra-red controlled brass tap

water miser

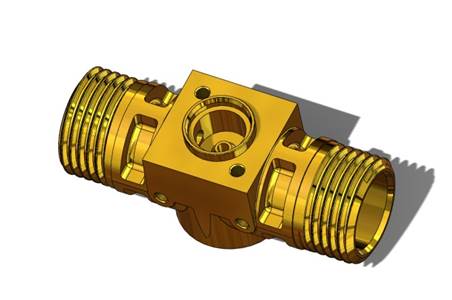

New brass housing and modified diaphragm lab tested to prove performance at a wide range of water pressures

New brass housing and modified diaphragm lab tested to prove performance at a wide range of water pressures

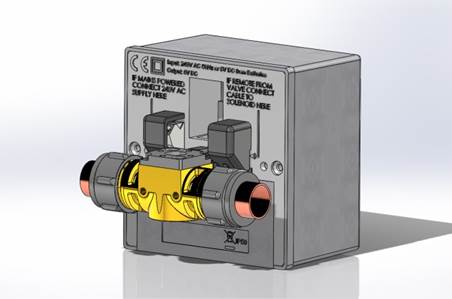

Water miser system incorporated into the control housing

Water miser system incorporated into the control housing

electronic controller

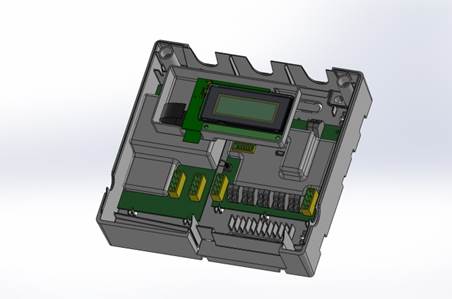

New system control box with revised electronics & LED display

New system control box with revised electronics & LED display

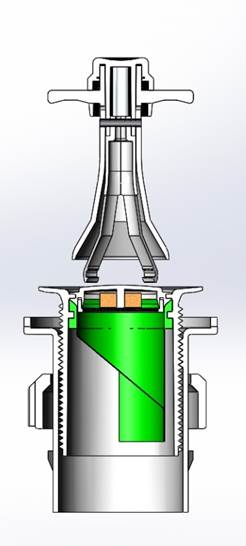

waterless urinal concept

  • Self closing diaphragm to contain odour
  • Redesigned screw-in boss
  • New boss to house the aerosol block
  • Special installation / extraction tool






Productionisation for a major housewares client

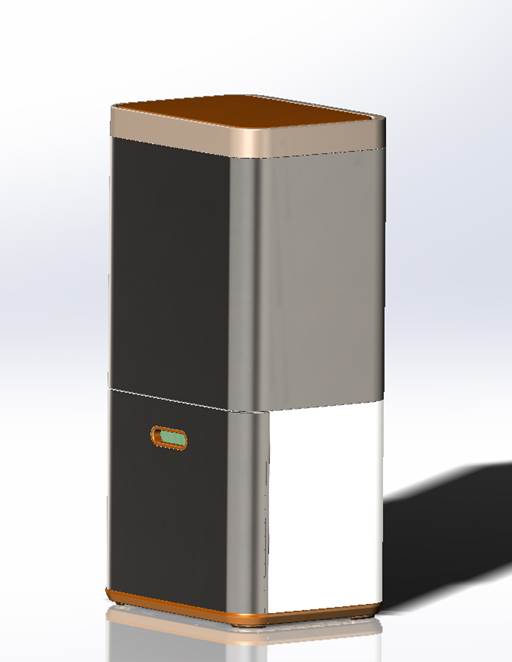

stand alone recycling bin

redesign for injection moulding

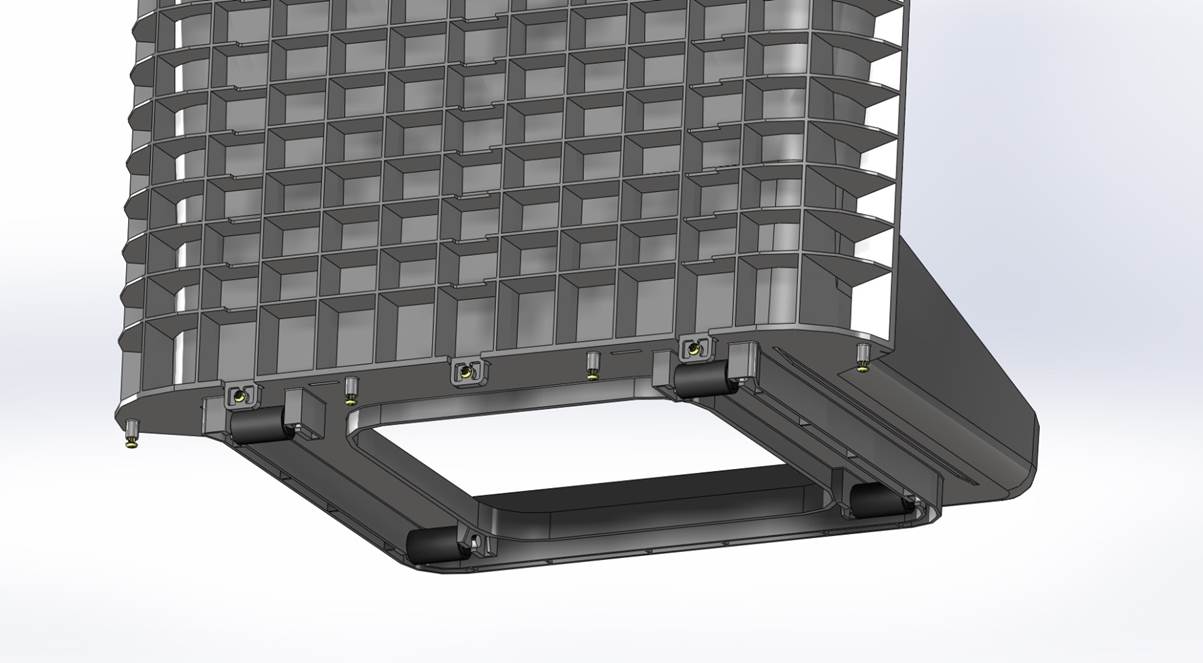

Vertical side slots incorporated for fast assembly of the front face plate

Vertical side slots incorporated for fast assembly of the front face plate

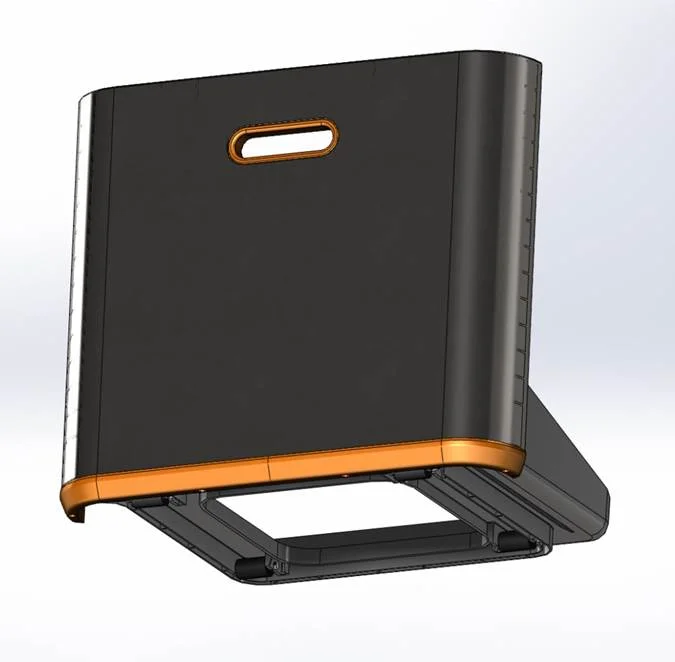

roll out drawer assembly

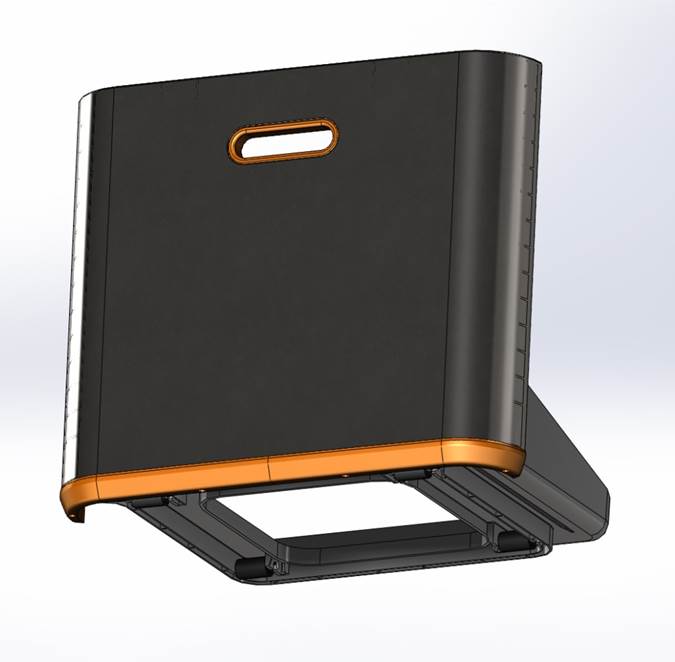

The finished drawer with front face, trim and contoured handle

The finished drawer with front face, trim and contoured handle

backshells for cable protection in the A380 & A350

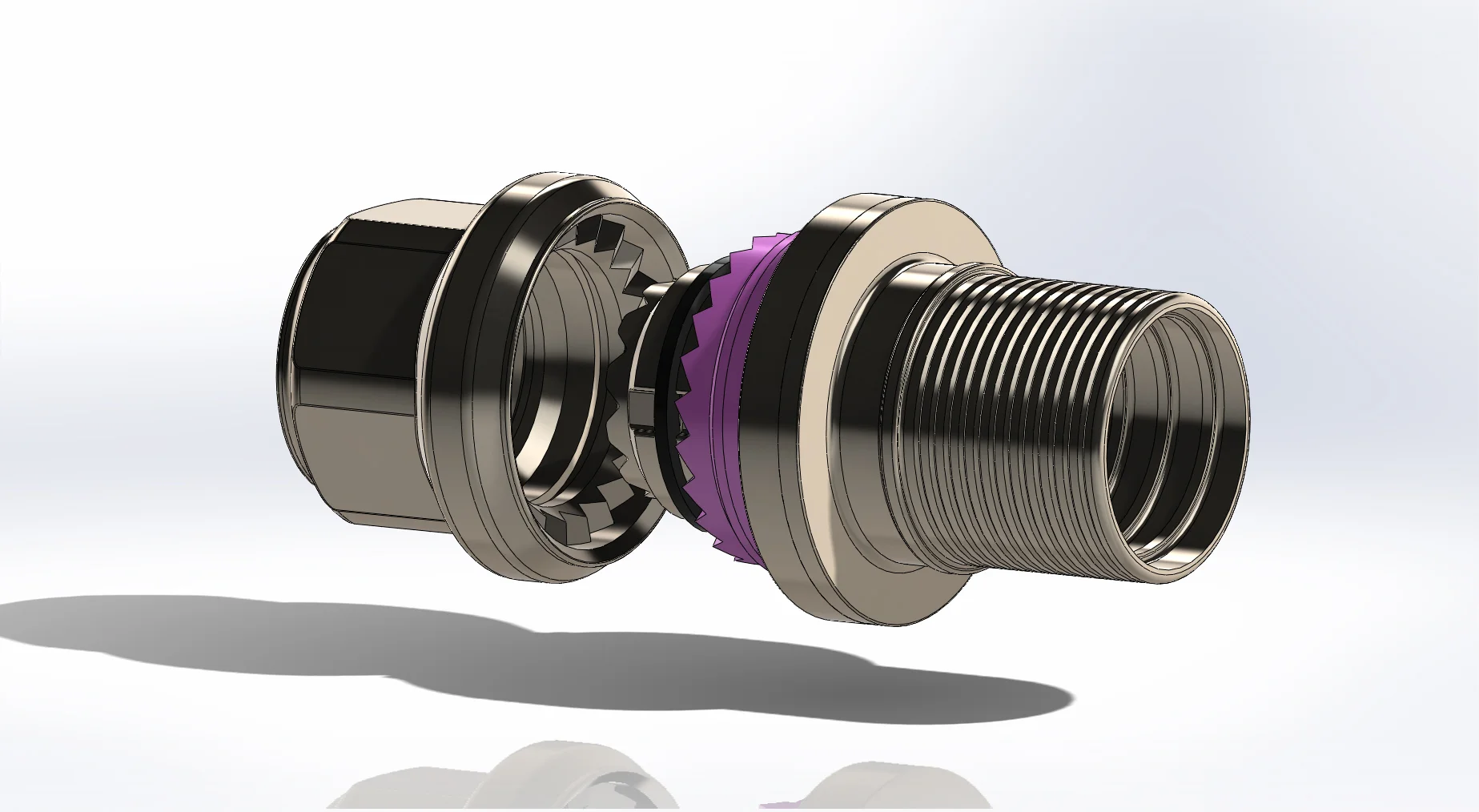

Redesign of straight connectors showing the new ultrasonic welded body and tails

Redesign of straight connectors showing the new ultrasonic welded body and tails

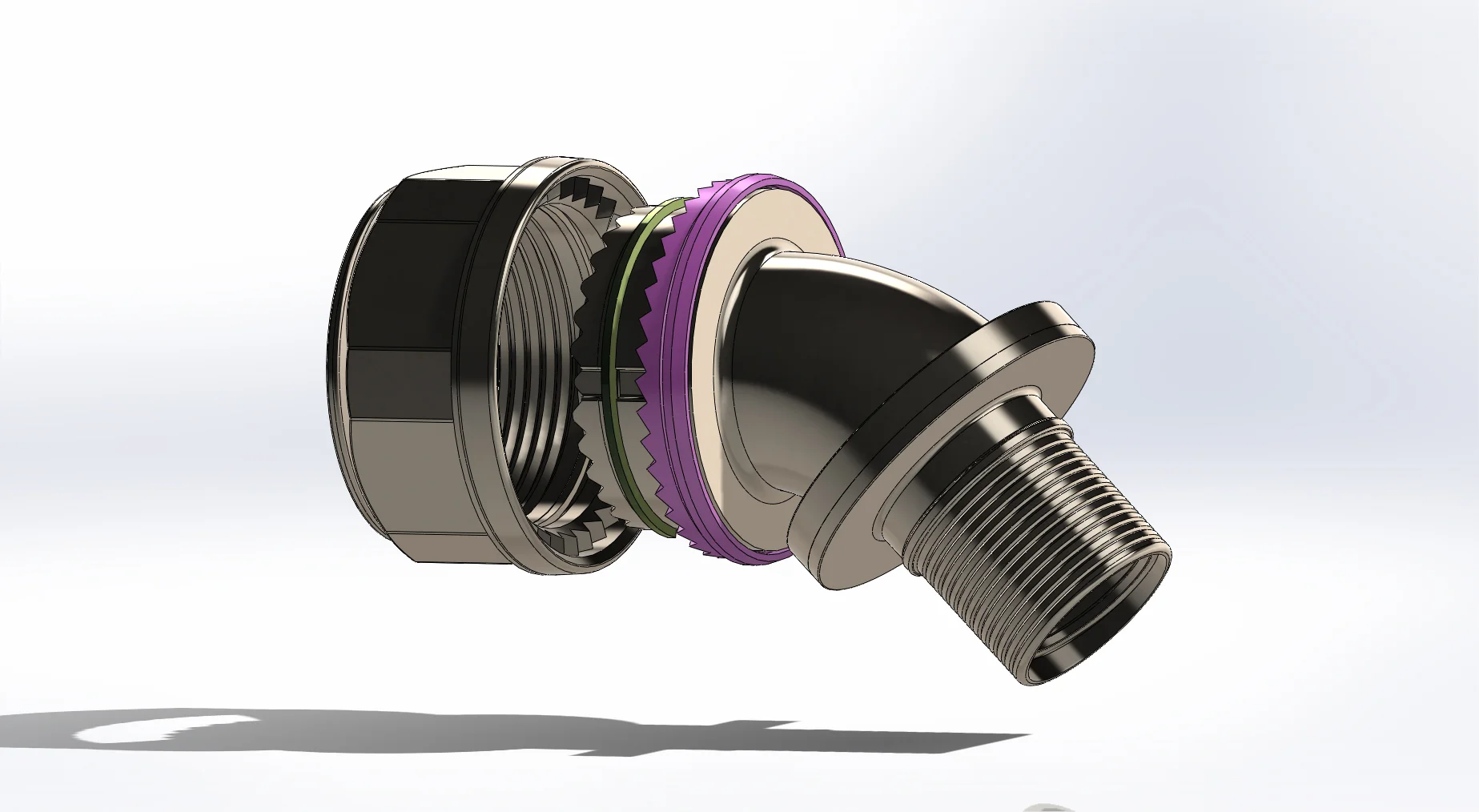

45 Elbow redesign with new ratchet system

45 Elbow redesign with new ratchet system

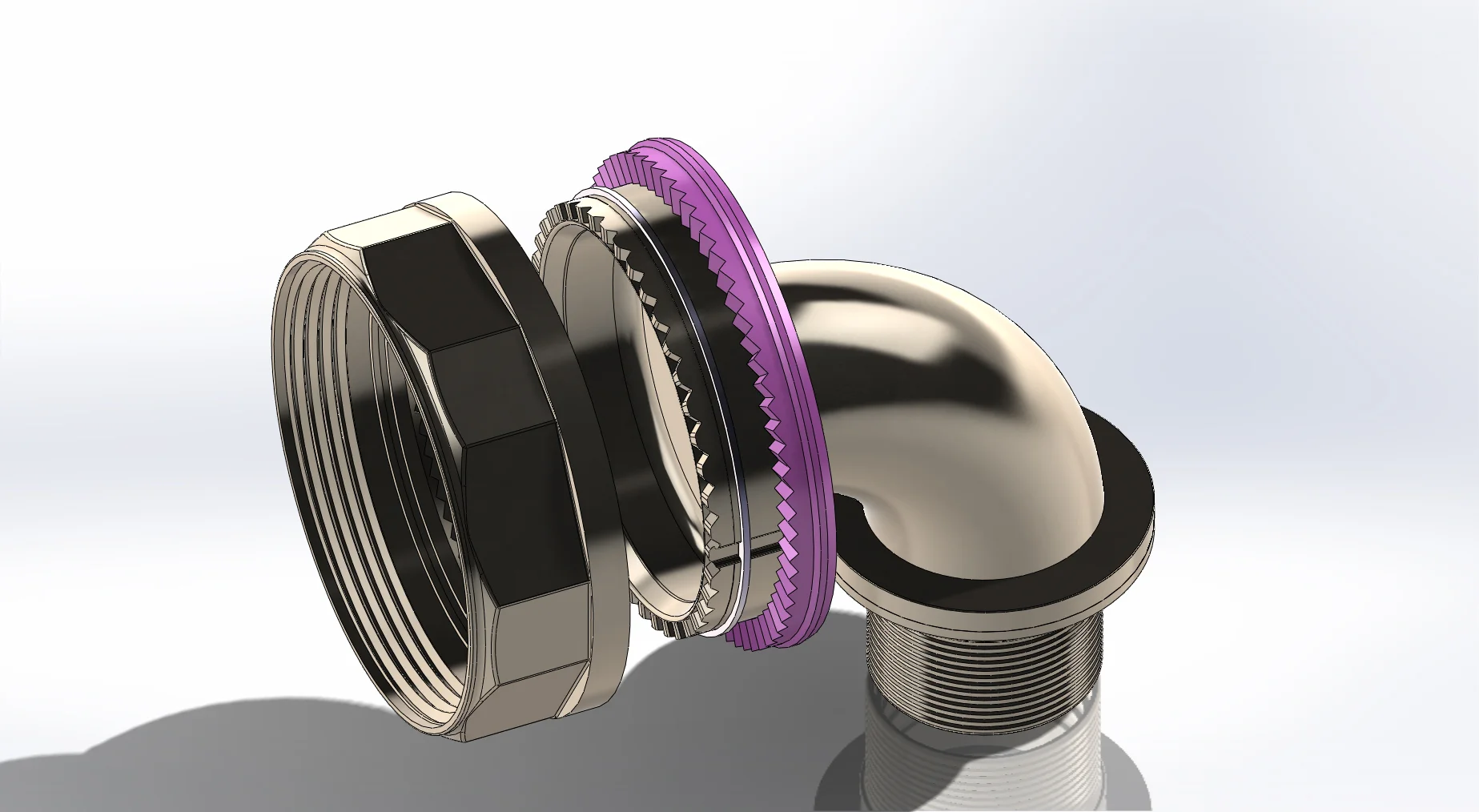

90 Elbow redesign

90 Elbow redesign
