Finite Element Analysis

cabin interiors - tray table

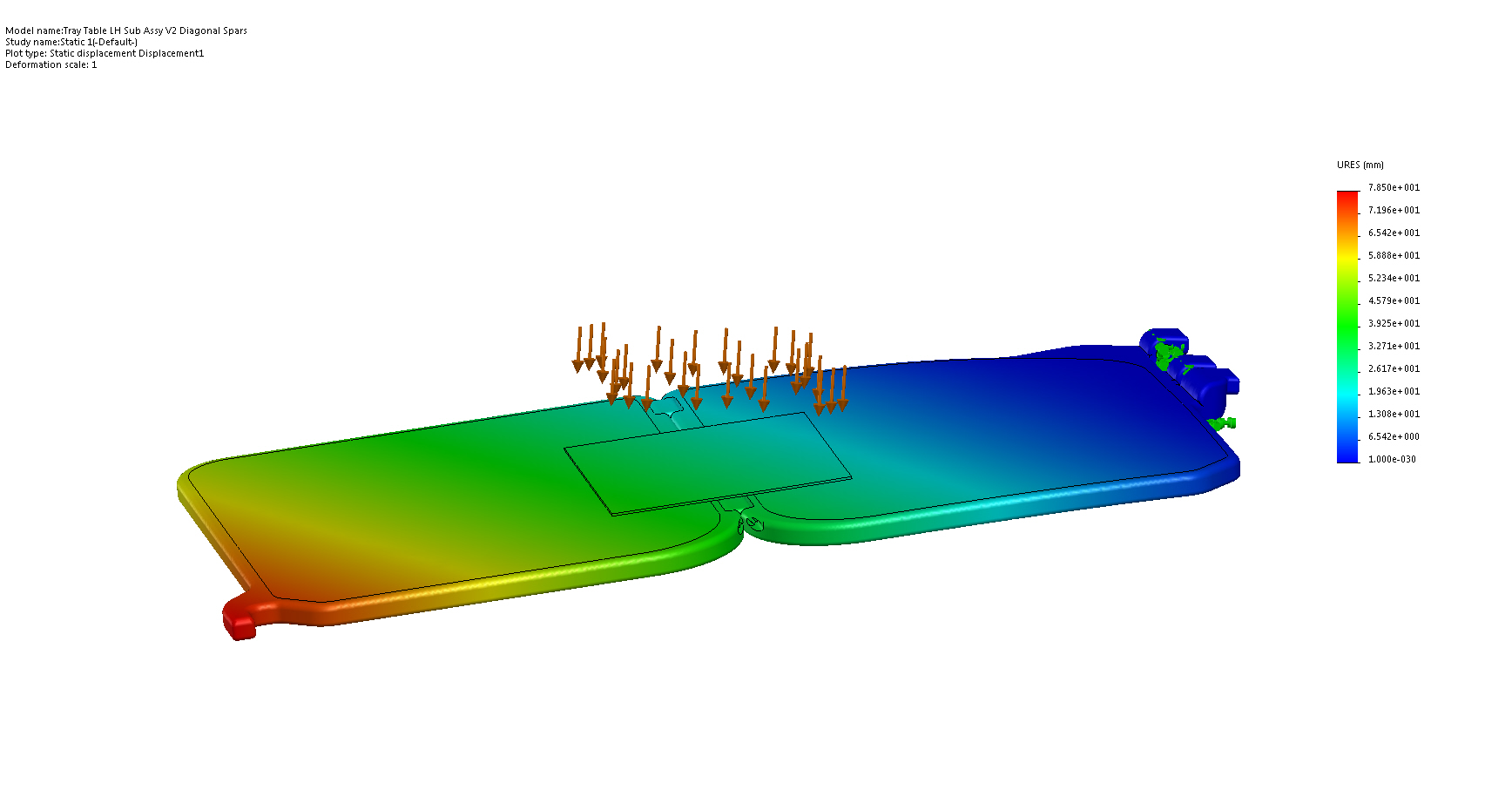

Client's original preferred internal design producing 78mm displacement and twist under load

Client's original preferred internal design producing 78mm displacement and twist under load

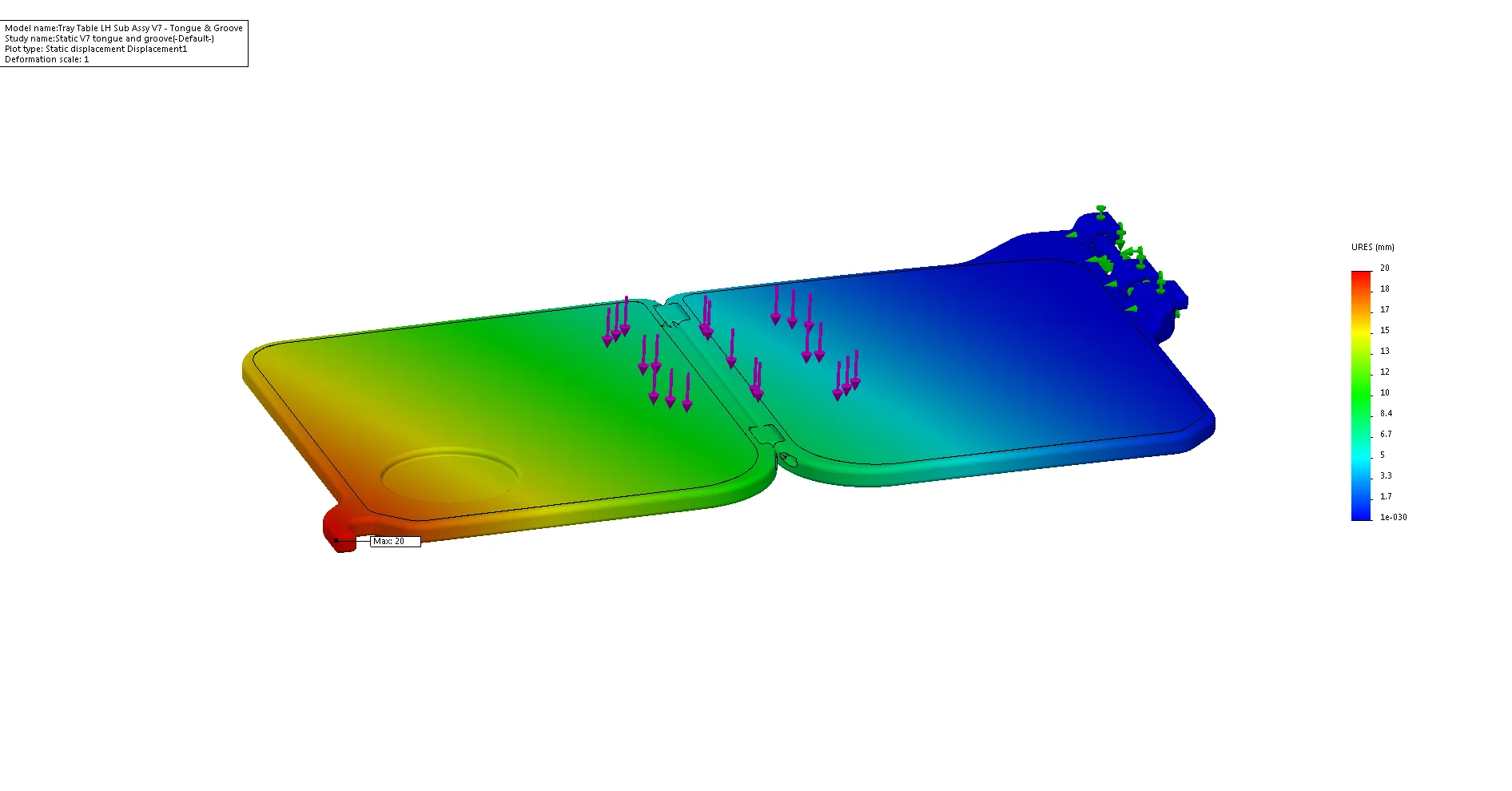

Our revised design delivering an acceptable 20mm displacement and no twist

Our revised design delivering an acceptable 20mm displacement and no twist

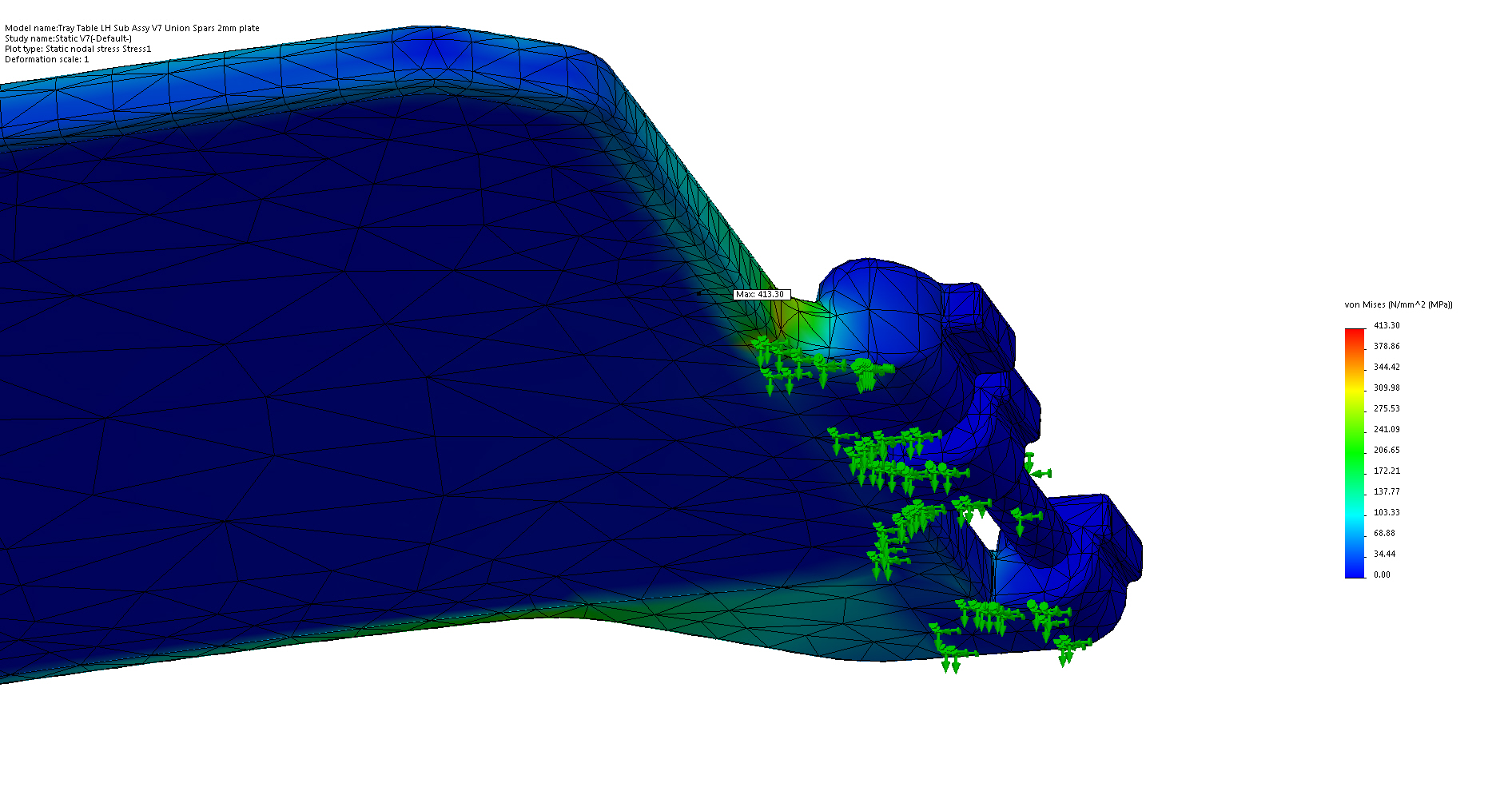

An interim 413 Mpa, down from 2651 Mpa with the original design, but still unacceptable

An interim 413 Mpa, down from 2651 Mpa with the original design, but still unacceptable

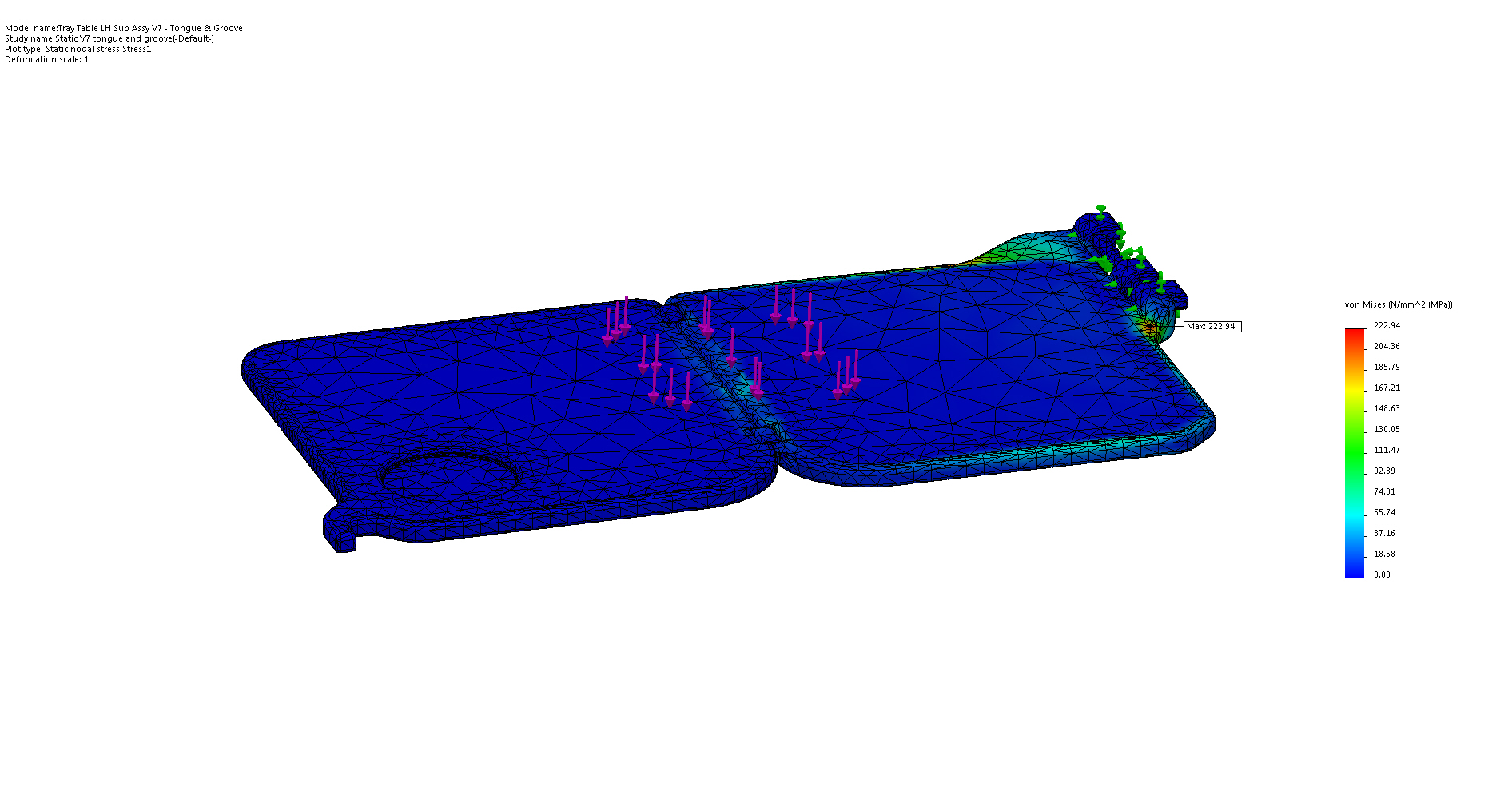

After internal redesign and interlocking hinge applied, 223 Mpa is well within material tolerance

After internal redesign and interlocking hinge applied, 223 Mpa is well within material tolerance

aerospace

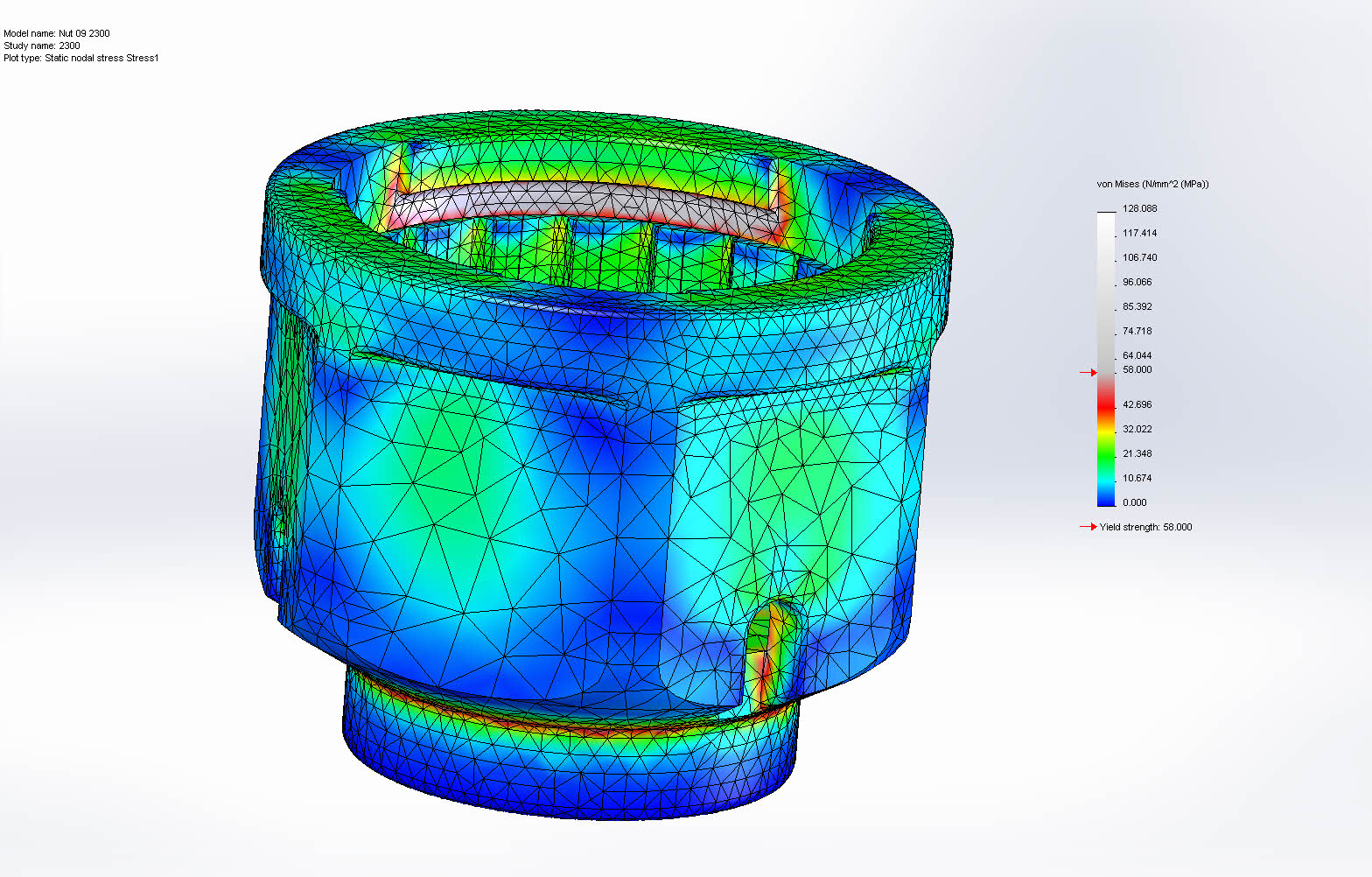

Examination of component design failure modes at a range of temperatures

Examination of component design failure modes at a range of temperatures

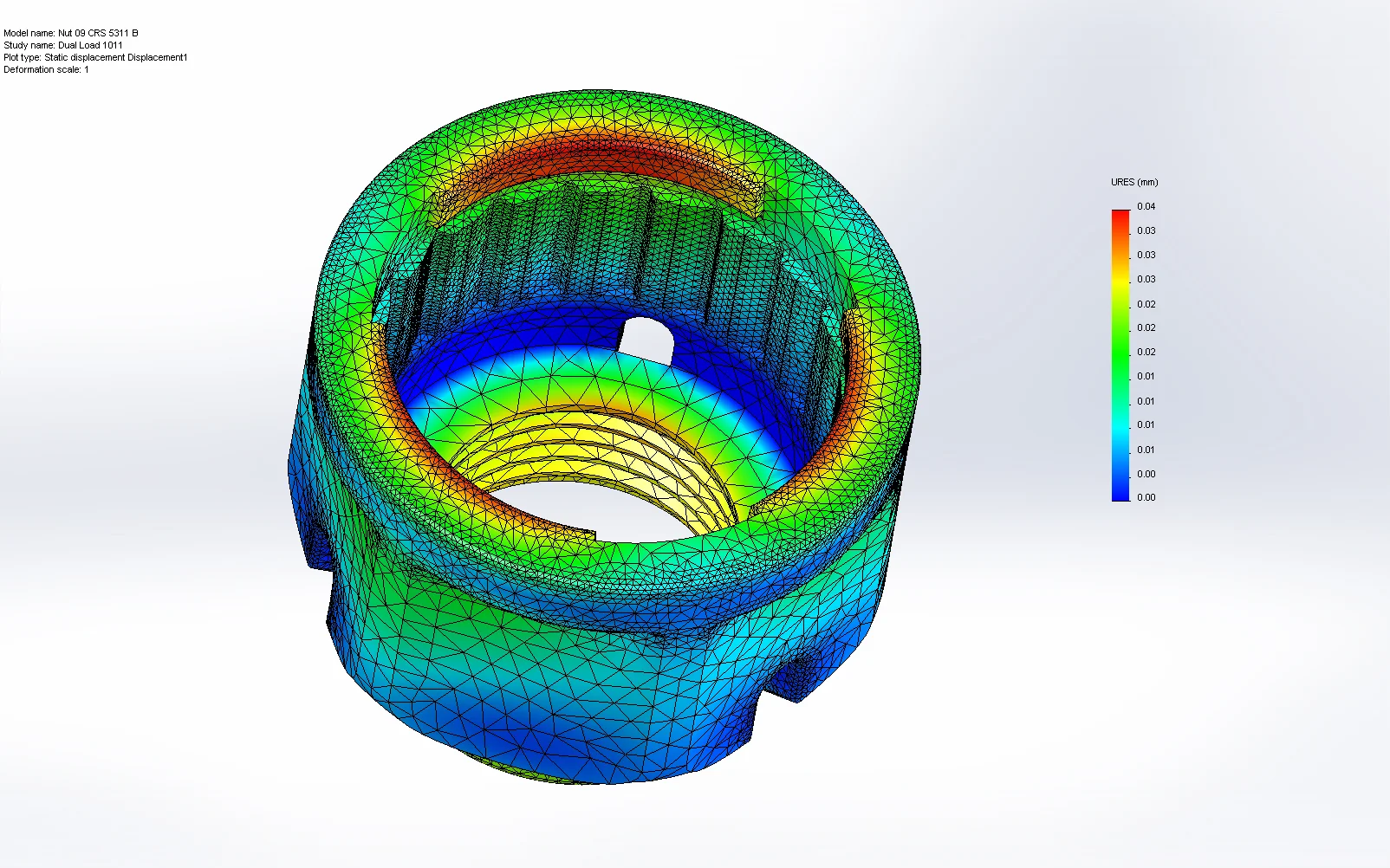

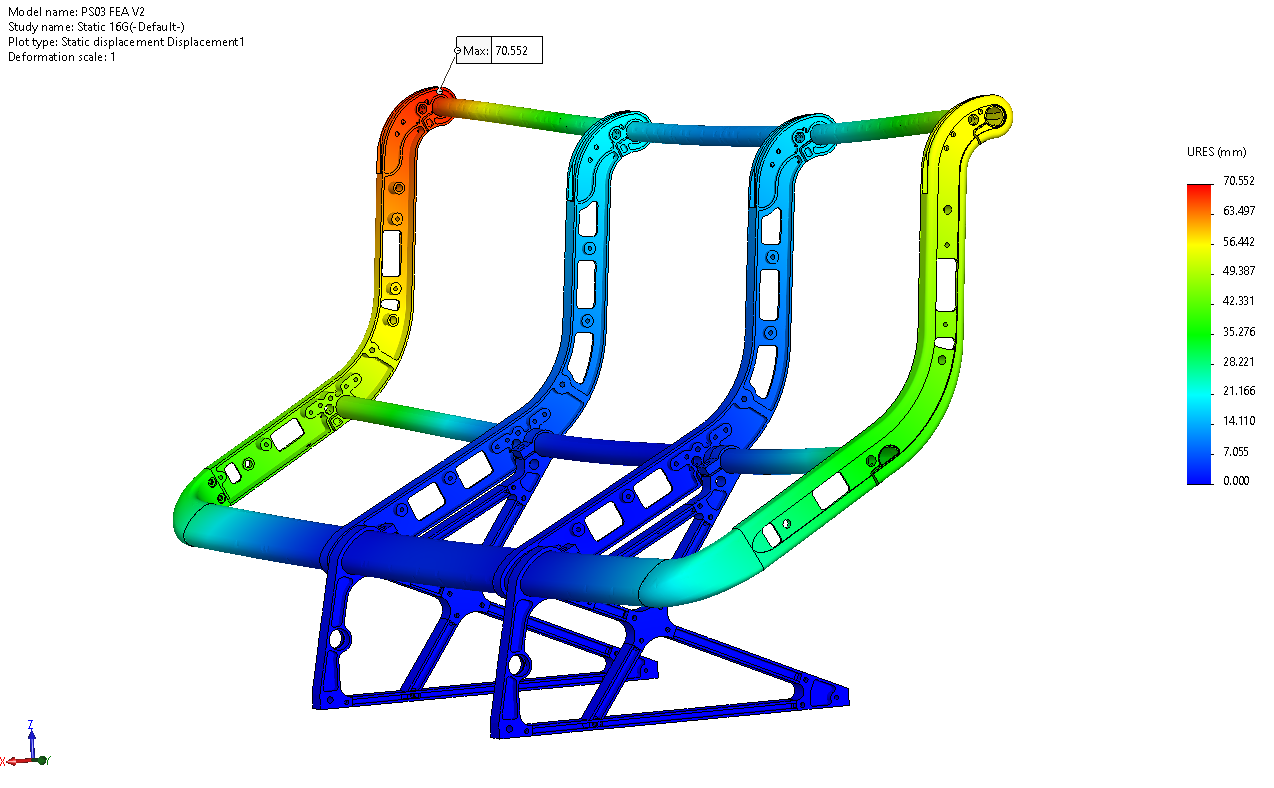

Displacement investigation to understand the reasons for repeated 'creep' after repeated re-locking

Displacement investigation to understand the reasons for repeated 'creep' after repeated re-locking

water management

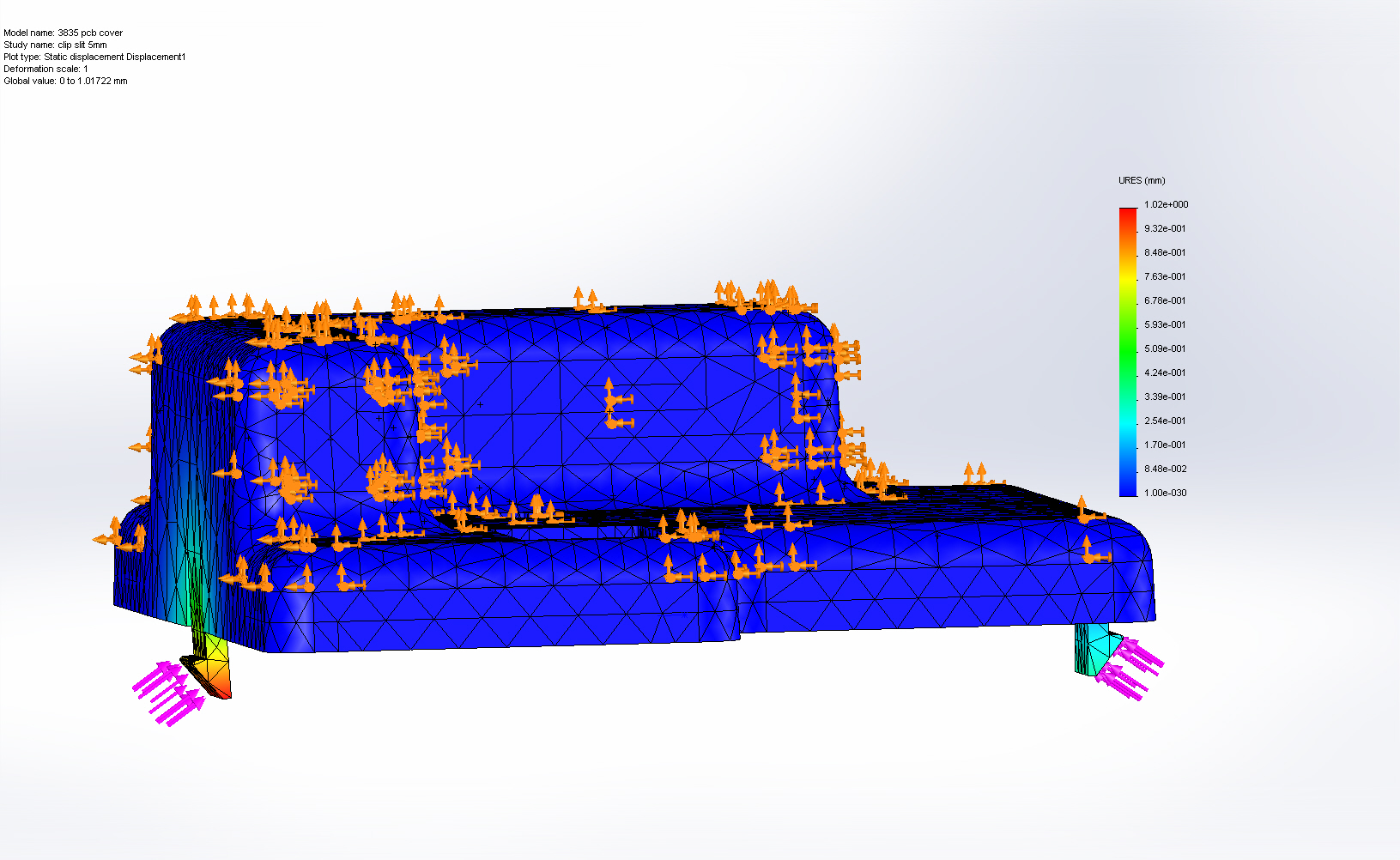

Displacement analysis to prove clip strength

Displacement analysis to prove clip strength
